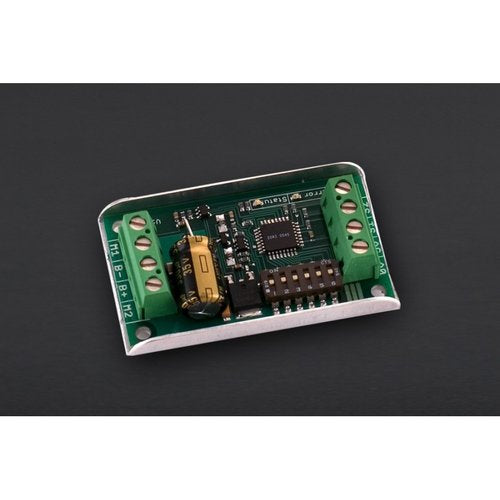

《お取り寄せ商品》SyRen Single 10A DC Motor Driver

本商品はお取り寄せ商品（輸入代行）です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います（請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です）。納期は仕入先に在庫がある場合、通常1.5～2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。

Introduction

The SyRen motor driver is one of the most versatile, efficient and easy to use motor drivers on the market. It is suitable for medium powered robots - up to 30lbs in combat or 100lbs for general purpose robotics.
Out of the box, the SyRen 10 can supply a single DC brushed motor with up to 10A continuously. Peak currents of 15A are achievable for a few seconds.

Overcurrent and thermal protection means you'll never have to worry about killing the driver with accidental stalls or by hooking up too big a motor.

With just one SyRen driver you can control a motor with: analog voltage, radio control, serial and packetized serial. You can build many different robots of increasing complexity for years to come with a SyRen. Owning two SyRens allows you to build differential drive (tank style) robots because they can work in tandem with built in mixing.
The operating mode is set with the onboard DIP switches so there are no jumpers to lose. The SyRen features screw terminal connectors - making it possible for you to build a robot without even soldering.
SyRen is the first synchronous regenerative motor driver in its class. The regenerative topology means that your batteries get recharged whenever you command your robot to slow down or reverse. SyRen also allows you to make very fast stops and reverses - giving your robot a quick and nimble edge.
SyRen has a built in 5V BEC that can provide power to a microcontroller or R/C receiver. The lithium cutoff mode allows SyRen to operate safely with lithium ion and lithium polymer battery packs - the highest energy density batteries available.
SyRen's transistors are switched at ultrasonic speeds (32kHz), meaning no one will be able to hear your robot ninja army approaching.
Use of our motor drivers with cheap AC adapters is not recommended. Use a battery or at least put a battery in parallel with a DC supply.

Applications

• Combat robots up to 30lb
• Normal and hobby robots up to 100lb
• Differential drive robots
• Electric vehicles, ride-on toys, scooters
• Easy speed/direction control for pumps, conveyors, automation and any application that uses a brushed DC motor

Specification

• Up to 18V in: 10A continuous, 15A peak
• 24V in: 8A continuous, 10A continuous with additional heatsinking/airflow, 15A peak
• Synchronous regenerative drive
• Ultra-sonic switching frequency
• Thermal and overcurrent protection
• Lithium protection mode
• Input modes: Analog, R/C, simplified serial, packetized serial
• Size: 35 x 57 x 14 mm (1.38 x 2.24 x 0.55")

Documents

• SyRen10-20
• Quick start guide
• SyRen DIP switch wizard
• Motor driver efficiency comparison
• Sample RPM versus throttle graph

ShippingList

• SyRen Dual 10A DC Motor Driver ×1

上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。

商品コード: DFROBOT-DRI0024
