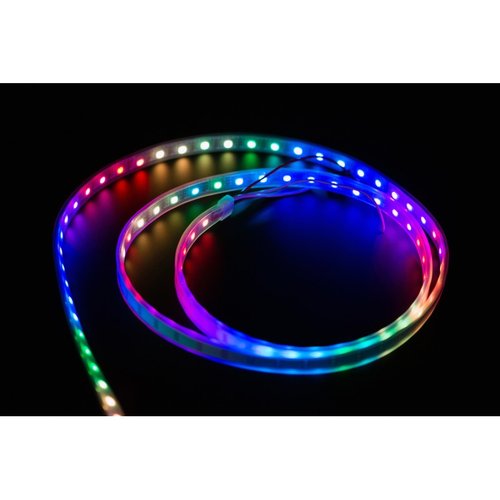

《お取り寄せ商品》Digital RGB LED Weatherproof Strip 60 LED - (1m)

本商品はお取り寄せ商品（輸入代行）です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います（請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です）。納期は仕入先に在庫がある場合、通常1.5～2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。

Introduction

LED Strips always glow nicely in the dark and are super fun to play with. They can be used in home decorations, festives and interactive art installations. For example, decorating a BLE-controlled strip around the tree for X'mas. (Instructables)

This Digital RGB Strip is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. There are 60 RGB LEDs per meter, and you can control each LED individually. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. It also contains a precision internal oscillator and a 12V programmable constant current control part, effectively ensuring the consistency of pixel point light color.
With low voltage requiremnt and environment-friendly design, this Digital RGB LED Strip has high brightness, low power consumption and long life. Its additional features are awaiting your exploration!

​

Digital RGB LED Weatherproof Strip Related Projects:

Project 1: How to Make Music IQ Led Lights with arduino board?

Project introduction: This Music IQ Led Lights with arduino board is an application based on an individually addressable LED strip.
The things you need to do this project:

Audio Analyzerx1
Analog sound sensorx2
RGB individually addressable LED strip x1
Beetle - The Smallest Arduino Microcontroller x1

Project 2: How to make a Programmable Fiber Optic Fairy Wings?

Project introduction: Technology and a few button clicks on the internet gives you the tools to create your own glowing fairy wings, lean how to make it.

The hardwares you need to do this project:

Digital RGB LED Weatherproof Strip 60 LED
Beetle - The Smallest Arduino
Project 3: LED writing board (micro:bit compatible)

The LED writing board is created using a photo frame that is surrounded with LED strip lights. When button A is pressed, the led strip turns white and flash. When button B is pressed, a random color is generated. To off, press button A and B together.Hardware components:

1 x photo frame
RGB individually addressable LED strip (neo pixels)
1 x microbit
1 x micro:mate(breakout board)

Features

• Integrated control circuit and RGB chip
• Built-in signal reshaping circuit
• Built-in electric reset circuit and power lost reset circuit
• Each pixel of the three primary color can achieve 256 brightness display,16777216 full color display,scan frequency no less than 400Hz/s
• Cascading port transmission signal by single line
• Data speed: 800Kbps
• over 50,000 hours life

Applications

• KTV/Nightclub/Hotel Wall
• Outdoor signs/banners
• Home decorative lighting
• Cars
• Lighting signals

Specification

• 60 RGB LEDs
• Power supply: 5V@1A (can work from 3.3V to 5V)
• For this strip you need 5V/1A at least as it is 1M long: if current was not enough, the color may not be correct.
• IC name: WS2812
• Brightness Grade: 256
• Weatherproof
• Note：LEDs can work from 3.3V-5V but the luminance will be different

Documents

• Wiki Doc
• Flexible LED Strip datasheet

ShippingList

• Digital RGB LED Weatherproof Strip 60 LED - (1m) x1

Projects

Project 1. How To Make A Micro:bit Heart Rate Monitor

The following tutorial will show you how to set the micro:bit beating together with your heart using the optical heart rate sensor:
Component List:
micro:bit - An Educational & Creative Tool for Kids
Gravity: Heart Rate Monitor Sensor for Arduino

Project 2. How to Make an Automatic Christmas Tree

With all the lights and decorations that people use at Christmas, power is left on all the time and electricity bills skyrocket. I made this motion detecting Christmas tree light setup that only turns on when people are nearby.
Hardware list:
PIR Sensor x1
Bluno x1
I/O Expansion Shield v7.1 x1
LED Strip x1
Relay Switch x1
Mini mp3 module
DFSpeaker v1.0
Regular power extension lead (with some modifications)
1k resistors x2

上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。

商品コード: DFROBOT-FIT0356
