《お取り寄せ商品》DE-LIDAR TF02 (ToF) Laser Rangefinder (22m)

本商品はお取り寄せ商品（輸入代行）です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います（請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です）。納期は仕入先に在庫がある場合、通常1.5～2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。

Introduction

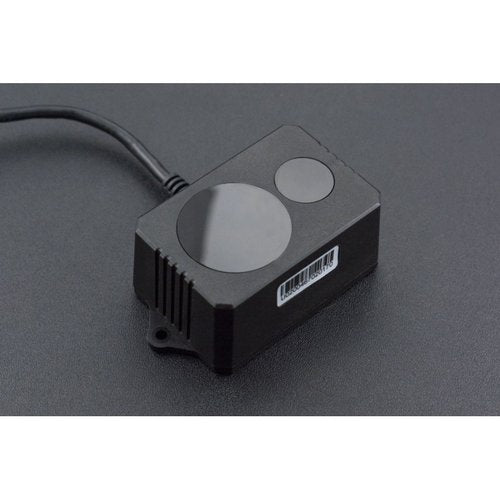

DE-LIDAR TF02 is a newly developed product based on the widespread application experience of TF01. It is a unidirectional laser rangefinder, which based on ToF (Time of Flight) technology. It is comprised of particular optical and electrical devices that makes it stable, high sensitivity and high precision.
ToF is the abbreviation for Time of Flight. This is a distance measurement method that measure the time that it takes for an object. The distance value between object and sensor is easy to get by calculating the time difference or phase difference between emission and reflection, so does the in-depth information.

Figure 1: TF02 Optical Stimulation Light Path
The protection design of the TF 02 is based on the IP 65 level, which prevents it from the dust, water, and corrosion. It is anti-interferential from the strong light outdoors. It can work under 100K lux light without the interference from the temperature, humidity, light, electronics and airflow. High sensitivity, measuring distance up to 22 meters, accuracy in cm level. Scanning frequency up to 100Hz, real-time detection of distance with a 100 times/second refresh rate for more accurate data. TF02 has a complete system, containing a protective shell made of materials with a high transmittance of infrared, which doesn't affect the optical performance.

Table 3: Optical Properties

TF02’s signal acceptance angle is 3˚, so LiDAR’s detection angle is 3˚. The side lengths of different distance detection ranges (the detection range takes on a square shape) are shown as below in the table.

Detection Range (Acceptance Angle) Diagram

Note: the distance in the table stands for the vertical distance between LiDAR and the detected object, with meter as unit. The side length unit of detection range is cm. Generally, the side length of detected object should be greater than that of detection range. Only in this way the LiDAR output data can be reliable. When the side length of detected object is less than that of detection range, the LiDAR output data is not stable and the error increases.

Figure 2: Application Illustration

Figure 3: Control Panel

Note: the side length of detecting range is not equal to the object resolution at the corresponding distance.

Features

Applications

Specification

Documents

Datasheet

Display Program

Arduino Developer Guide

FAQ List

ShippingList

DE-LIDAR TF02 (ToF) Laser Rangefinder (22m) x1

上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。

商品コード: DFROBOT-SEN0238
