DFROBOT-DFR0275
SKU 4282

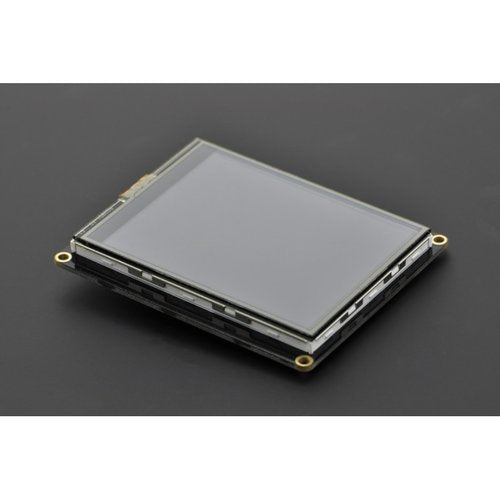

《お取り寄せ商品》2.8” USB TFT Touch Display Screen for Raspberry Pi Model B/Raspberry Pi 2 Model B--販売終了

送料区分: 650

販売終了

商品コード: DFROBOT-DFR0275

発売日: 2018-11-21

短いURL: ssci.to/4282

売り切れ
¥7,612 （税込）
¥7,612 - ¥7,612
¥7,612

本商品はお取り寄せ商品（輸入代行）です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います（請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です）。納期は仕入先に在庫がある場合、通常1.5～2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。

Introduction

In recent years, computing terminals have expanded exponentially from desktop to portable handheld devices. We have witnessed the rapid development of these devices. Complex operating systems being ported to tiny embedded hardware like Raspberry Pi, Cubieboard, routers with openWRT, etc. Those devices that has managed to become compact and easy to carry have being wide spread products and majority of them are on the Ghz level of processing power.


Like PCs but with a compact system and considerable computing resources, it has become the solution for various enthusiasts. Many open source hardware vendors have being dreaming for this solution for quite some time. However, some interactions for these embedded solutions still need bulky HDMI monitors or TVs for use or even debugging.

In order to allow these devices have some portability and economize power at the same time, this portable USB monitor with touch screen (RPUSBDisp) is created. It is designed specifically for embedded designs with business card size and it just requires a USB cable to make it work without additional power supply.

Supported Hardware Platforms

Supports any computing devices with USB Host communication functionality to act as a standard display or touch screen devices. You just need to add the corresponding driver. For the majority of embedded devices supporting Linux OS, we offer open source kernel driver and several OS images that you can try. Download the sources and adapt it to your project, or directly download the image and try it on any of the supported platforms:

  • Raspberry PI

  • Cubieboard （I Generation and II Generation）

  • pcDuino

  • MiniPC TV Sticks based on Allwinner A10/ Rockchip RK3066 Solutions （MK802, UG802, etc.）

  • WR703 Mini Router

Project 1. ESP8266 Project: Desktop Weather Station With WIFI

Hardware needs:

Features

  • Extensive Device Support

You can use it as a display for most embedded development board on the current market (such as RaspberryPi, Cubieboard, etc.). Benefit from USB interface that provides opportunity for those devices that cannot connect with monitor for display in the past like routers. In addition, we support Arduino Yun and Intel Galileo Developer Edition!

  • Standard Device Interface

With the drivers developed by RoboPeak, RPUSBDisp can be identified as a standard display and touch-screen device by the operating system, that means any existing graphical interface program can be displayed without any modification.

  • Open Source Brings More Possibilities

As an open source project, we provide it's schematics, communication protocols, Linux kernel driver code and so on. That helps you develop and create new designs easily.

Version 2 Update


  • LCD color improved

  • Firmware upgrade (compatible with V1, improving touch sensitivity and frame rate)

Specification

  • Display Resolution: 320×240
  • Color Depth: 16bpp
  • Screen Size: 2.8 inch
  • Communication: USB2.0 Full-Speed
  • USB Interface Specifications: Micro-USB
  • Touch Screen: Resistive Single Point
  • Size: length 74mm(2.91"), width 60mm(2.36")
  • Weight: 50g

Documents

Tutorial

ShippingList

  • 2.8” USB TFT Touch Display Module For Raspberry Pi V2 x1


上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。
